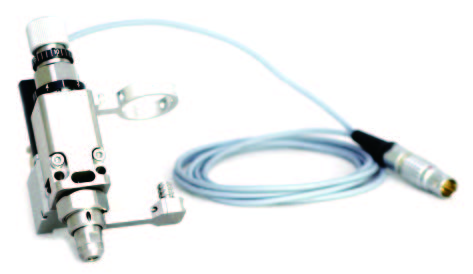

Jet Dispensing Valve

Product overview
Related parameters
Related downloads

Features:

Non-contact jet dispensing, eliminates z-axis movement.

High speed jetting upto 200 dots/sec acheivable.

High accuracy & repeatability.

Jets a wide range of fluids.

Simple operation and easy maintenance.

Smallest jetted dot size:200μm.

Extended long service life.

Exceptionally low cost of ownership.

Feasible to realize jet-on-fly dispensing mode if working with AJC-100 controller.


Typical Applications:

Underfills for Flip Chips & BGAs

Phosphor filled silicones potting for LEDs

Die-attach epoxies for IC packaging

Encapsulation for COBs

Selective conformal coating for SMDs

Surface mount adhesives

Sealing for FPD panals

Lens fixing glue for camera modules assembly

Lens attach for LED TV light bars assembly

Conductive adhesive

UV-curable adhesive

Hot-melt glues


Precision parts:

Wide range of sizes available

Tungsten carbide parts for high durability


Optional configuration:

Model: AJ-1000HM

For hot-melt glue jetting

Min.line width: 0.3mm

Technical specifications:

Dimension (L X D X h): 76mm X 59mm X 130mm

Net weight: 580g

Max.solenoid frequency: 280Hz

Max.jetting rate: 200shots/sec

Min.dot size: 200 μm

Nozzle diameter: 0.07mm to 0.6mm (2.8mil to 24mil)

Min.input air pressure for solenoid: 0.5MPa

Input power for nozzle heater: 110VAC / 50W

Max.heater temperature: 150 ° C

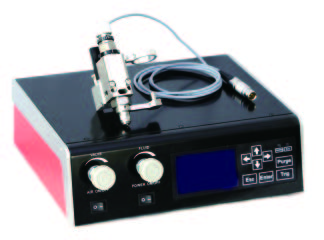

Controller:

AJC-100

Dimensions (L X D X h): 242mm X 304mm X 98mm

Net weight: 3.8kg

Input power: 200-240VAC / 50-60Hz

Display panel: LCD 256 X 160 pixels

Trigger input: Trigger button or 24V pulse input

Air pressure input: min. 0.6MPa

Air pressure output: 0 ~ 0.7MPa

Power output for heater: 100VAC

Valve ON/OFF durations: 0.1ms ~ 999.9ms

Valve ON/OFF intervals: 0.1ms ~ 999.9ms

Cycle counts: 1 ~ 9999
