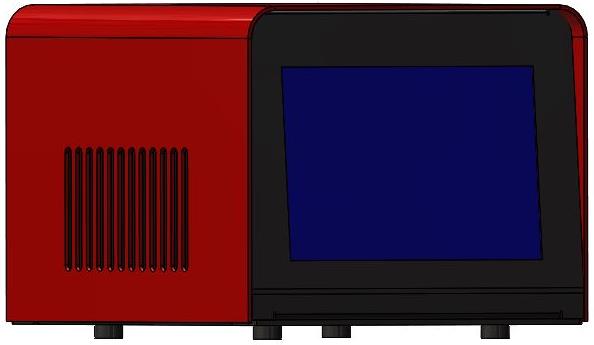

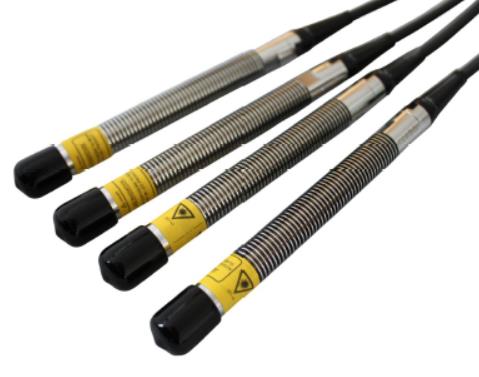

FU1000E is a UV-LED spot light source that emits UV light at 365nm, 395nm or 405nm. The controller includes a footswitch and AC power cord. The required LED head is purchased separately and is available in various sizes (3mm, 6mm, 8mm or 10mm diameter). The maximum number of LED heads that can be installed is four units allowing for multiple cure areas.
Product Feature
• provide various wavelengths in the range of 365nm, 395nm or 405nm.
• Instant on-off capabilities, no warm-up time required as compared to mercury-arc
lamp UV Wand systems
• The controller has a on/off timer in software, plus a manual mode for use with
remote on/off commands
• LEDs produce zero infrared emissions, reducing part heating and warping
• Fully integrated, self-contained system, including cooling
• PC and touch panel control, easy operation
• Energy efficient – LEDs produce little wasted energy
• Each LED head can be programmed independently for UV intensity and exposure
time
• Can operate up to four LED heads
• Each channel is adjustable and can be controller separately
• Choose different diameter LED heads (3 mm, 6 mm, 8mm or 10 mm), must be
purchased separately
• Optional 5 m cable length for LED heads is available
• Temperature feedback to eliminate LED heads overheating
Application
• Curing for adhesive
• Curing for printing ink
